Product: Spokes
Manufacturing Capability from Diameter 2.55mm up to 5.0mm. Minimum Length
Dimension
from 80mm, maximum to 300mm. With Surface Plating to Spokes by Zn and Ni-Cr
Two types of Spokes as following
1. Straight Type
2. Swage Type, by reduce size of diameter

Product: Nipples
Able to produce Nipples Head in 2 type, with surface plating by Zn and Ni-Cr
Two types of Nipples Head as following
1. Minus Head Type
2. Plus Head Type

icon_bullet_address1-1

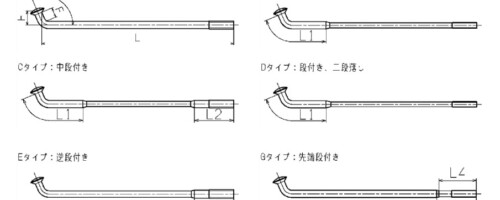

Spoke Shape

icon_bullet_address1-1

Spoke Size

Distinguish by angle and control size differs.

70~149°: It is called H size and controled H +0.3/0.
150~179°: It is called F size and controlled F +1/0.
180°: No bend.
icon_bullet_address1-1

Plating variation


icon_bullet_address1-1

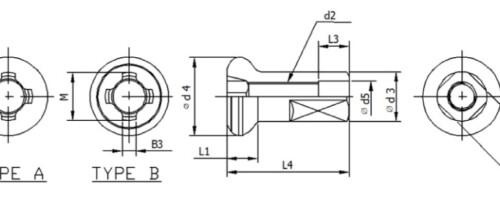

Nipple Size

<strong”>Nipple Minus</strong”>

Nipple Plus Head

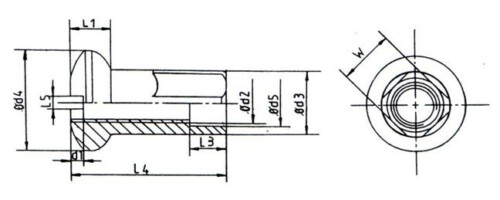

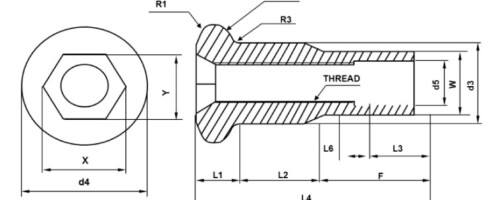

Nipple Hexagon Head

icon_bullet_address1-1

Nipple Size


icon_bullet_address1-1

Plating variation


Back to Product page
